3003 Aluminum Pc Radiator

Name: 3003 Aluminum Pc Radiator
Brand: Shenglin
Price: 6 USD

Quality 3003 Aluminum Pc Radiator wholesale

Brand Name : Shenglin

Certification : RoHS

Place of Origin : China

MOQ : 10 pcs

Price : 6~30USD/Unit

Payment Terms : T/T, Western Union

Supply Ability : 10000 Pcs Per Month

Delivery Time : 7~10 days

Packaging Details : Plywood wooden box or carton box+ pallet

Tube material : Aluminum

Fin material : Aluminum

Plate material : Aluminum

Application : PC, 3D printer (circuit control), laser printer, medical equipment......

Tube type : Flat

Frame treating : Powder coating

If in stock or not : Some models are in stock

Match fan : Available

Contact Now

Water Cooling Radiator For PC Cooling

Features

1. Material: 3003 aluminum
2. Flat tube: 22,18,26,32,16mm
3. Fin height: 7~8mm, fin space 2.2~3.5mm
4. Fin height: 4.5~4.55mm, fin space 1.8~2.2mm
5. Can do powder coating.

Technical parameter

Model	Product data	Product photo	Remark
CPU-001	Core dimension:89.59916mm Outside dimension:13110032mm Installation dimension:82.5*82.5mm Inlet and outlet:G 1/4 screw thread
CPU-120A-10	Core dimension:11610816mm Outside dimension:15612132mm Installation dimension:105*105mm Inlet and outlet:∅ 10mm/∅ 8mm		The inlet and outlet diameter of this model has two type, Φ8 and 10mm
CPU002B-10	Core dimension:11610816mm Outside dimension:15612132mm Installation dimension:105*105mm Inlet and outlet:G 1/4 screw thread
CPU-003A-10	Core dimension:23411816mm Outside dimension:27512132mm Installation dimension:105*105mm Inlet and outlet:∅ 10mm/∅ 8mm		The inlet and outlet diameter of this model has two type, Φ8 and 10mm
CPU-003B-10	Core dimension:23411816mm Outside dimension:27512132mm Installation dimension:105*105mm Inlet and outlet:G 1/4 screw thread
CPU-004	Core dimension:808016mm Outside dimension:1058326mm Installation dimension:71*71mm Inlet and outlet:∅ 8mm
CPU-120A-12	Core dimension:11611916mm Outside dimension:15612132mm Installation dimension:105*105mm Inlet and outlet:∅ 10mm/∅ 8mm		The inlet and outlet diameter of this model has two type, Φ8 and 10mm
CPU-120A-18	Core dimension:11611916mm Outside dimension:15612132mm Installation dimension:105*105mm Inlet and outlet:∅ 10mm/∅ 8mm		The inlet and outlet diameter of this model has two type, Φ8 and 10mm
CPU-120B-18	Core dimension:11611916mm Outside dimension:15612132mm Installation dimension:105*105mm Inlet and outlet:G 1/4 screw thread
CPU-240A-12	Core dimension:23411816mm Outside dimension:27512132mm Installation dimension:105*105mm Inlet and outlet:∅ 10mm/∅ 8mm		The inlet and outlet diameter of this model has two type, Φ8 and 10mm
CPU-240A-18	Core dimension:23411816mm Outside dimension:27512132mm Installation dimension:105*105mm Inlet and outlet:∅ 10mm/∅ 8mm		The inlet and outlet diameter of this model has two type, Φ8 and 10mm
CPU-240B-18	Core dimension:23411816mm Outside dimension:27512132mm Installation dimension:105*105mm Inlet and outlet:G 1/4 screw thread
CPU-360A-18	Core dimension:35411816mm Outside dimension:39512132mm Installation dimension:105*105mm Inlet and outlet:∅ 10mm/∅ 8mm		The inlet and outlet diameter of this model has two type, Φ8 and 10mm

Application:

PC, 3D printer (circuit control), laser printer, medical equipment, hairdressing equipment, CNC machine tool computer version, electrical cabinet (water cooling), automation equipment (such as CNC machine), welding machine, wine cabinet, small system Ice machine and small air conditioner.

Product Tags:

cpu aluminum Heat Exchanger Radiator

CNC Aluminum fin Heat Exchanger Radiator

3003 aluminum pc radiator

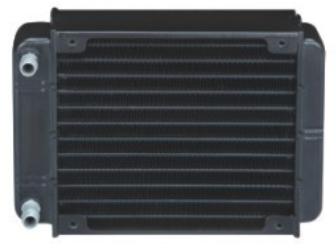

3003 Aluminum Pc Radiator Images
